ELECTRO GALVANIZED WIRE | HOT DIPPED GALVANIZED WIRE | |||
LOW CARBON | HIGH CARBON | LOW CARBON | HIGH CARBON | |
WIRE DIAMETER | 0.11-5.00MM | 0.2-8.00MM | 0.11-5.00MM | |
TENSILE STRENGTH | 290-700MPA | 290-700MPA | 1000-1870MPA | |
10-25G/M2 | 10-25G/M2 | 40-600G/M2 | 40-600G/M2 | |
PRODUCTION CAPACITY | 1000TONS/MONTH | 1000TONS/MONTH | 2000TONS/MONTH | 1000TONS/MONTH |
PACKING FEATURE FOR DIFFERENT AREA | ||||
AMERICA | 1KG/COIL,20COILS/CARTON 500-800KGS/COIL.REELS SPOOLS. CARRIERS. USA CANADA BRAZIL CHILE PERU | |||
EUROPE | 20KGS/COIL,30KGS/COIL. 100KGS/COIL.UK, FRANCE ITALY CYPRUS CZECH SPAIN POLAND | |||
MIDDLE EAST | 1KG/COIL,10COILS/BUNDLE,5KGS/COIL.5COILS/BUNDLE .10KGS/COIL 20KGS/COIL. .DUBAI OMAN ISRAEL SAUDI ARABIA LEBANON | |||
ASIA | 25KGS/COIL.50KGS/COIL,100KGS/COIL.500-800KGS/COIL. INDIA THAILAND SINGAPORE MALAYSIA INDONESIA | |||
AFRICA | 16KGS/COIL,18KGS/COIL.20KGS/COIL. ANGOLA SOUTH AFRICA MADAGASCAR ETHIOPIA UGANDA MALI LIBERIA | |||

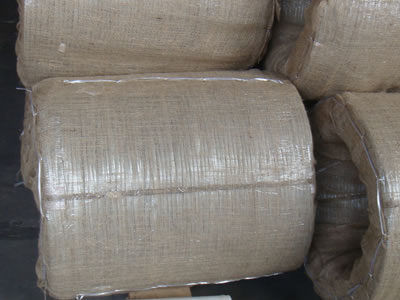

PACKING CAN BE SEVERAL METERS OR WEIGHT LIKE 10METERS COIL,500G/COIL,1KG/COIL.TO 800KGS/COIL.GUNNY BAG OR WOVEN BAG | ||||
| Galvanized wire | |||||||
| Wire gauge size | SWG | BWG | |||||
| Inch | mm | Inch | mm | ||||
| 8 | 0.160 | 4.06 | 0.165 | 4.19 | |||
| 9 | 0.144 | 3.66 | 0.148 | 3.76 | |||
| 10 | 0.128 | 3.25 | 0.134 | 3.40 | |||
| 11 | 0.116 | 2.95 | 0.120 | 3.05 | |||
| 12 | 0.104 | 2.64 | 0.109 | 2.77 | |||
| 13 | 0.092 | 2.34 | 0.095 | 2.41 | |||
| 14 | 0.080 | 2.03 | 0.083 | 2.11 | |||
| 15 | 0.072 | 1.83 | 0.072 | 1.83 | |||
| 16 | 0.064 | 1.63 | 0.065 | 1.65 | |||
| 17 | 0.056 | 1.42 | 0.058 | 1.47 | |||
| 18 | 0.048 | 1.22 | 0.049 | 1.25 | |||
| 19 | 0.040 | 1.02 | 0.042 | 1.07 | |||
| 20 | 0.036 | 0.91 | 0.035 | 0.89 | |||
| 21 | 0.032 | 0.81 | 0.032 | 0.813 | |||
| 22 | 0.028 | 0.71 | 0.028 | 0.711 | |||
| 23 | 0.024 | 0.61 | 0.025 | 0.64 | |||
| 24 | 0.022 | 0.56 | 0.022 | 0.56 | |||
| 25 | 0.02 | 0.51 | 0.020 | 0.51 | |||
| 26 | 0.018 | 0.46 | 0.018 | 0.46 | |||
| 27 | 0.016 | 0.42 | 0.016 | 0.41 | |||
| 28 | 0.015 | 0.38 | 0.014 | 0.36 | |||
| 29 | 0.014 | 0.35 | 0.013 | 0.33 | |||
| 30 | 0.0124 | 0.32 | 0.012 | 0.31 | |||
| 31 | 0.012. | 0.30 | 0.010 | 0.25 | |||
| 32 | 0.011 | 0.27 | 0.009 | 0.23 | |||
| 33 | 0.010 | 0.25 | 0.008 | 0.20 | |||
| 34 | 0.009 | 0.23 | 0.007 | 0.18 | |||
| 35 | 0.008 | 0.21 | 0.005 | 0.13 | |||
| 36 | 0.0076 | 0.19 | 0.004 | 0.10 | |||
| 37 | 0.07 | 0.17 | |||||
| 38 | 0.006 | 0.15 | |||||
